SC Modern Single coil Pickups / Alnico 5
STA
This, SC Modern is the most representative single coil pickups of WSC. It has high output true single-coil for warm guitars with more sustain, fullness, and output-and less treble response. The staggered Alnico 5 pole pieces are a stronger and deeper magnetic field. Extra coil windings provide extra power making this pickup great for heavier music styles. They are wound with 42 AWG poly coated wire, resulting in tones that are brighter and more edgy. We recommend it for country, pop, blues, classic rock and heavy rock.

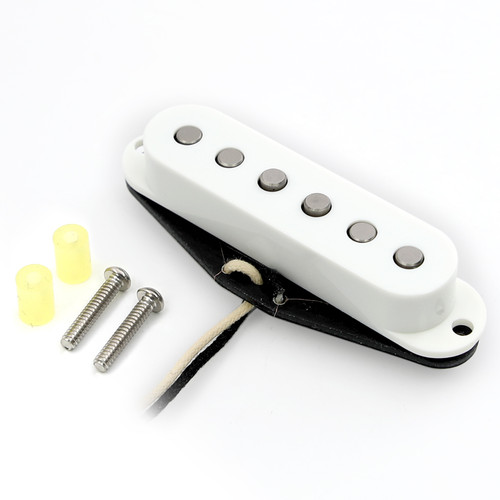

#M950110001 / STA-Neck
Position : Neck
Resistance : 5.6K
Magnet : Alnico 5 ROD
Out-put wire : Cloth Lead Wire
Includes 2 pcs of phillips round head #6-32x20mm mounting screw and 2 pcs of 10 mm rubber spring
Approximate weight : 101g
Assy No. AS296W

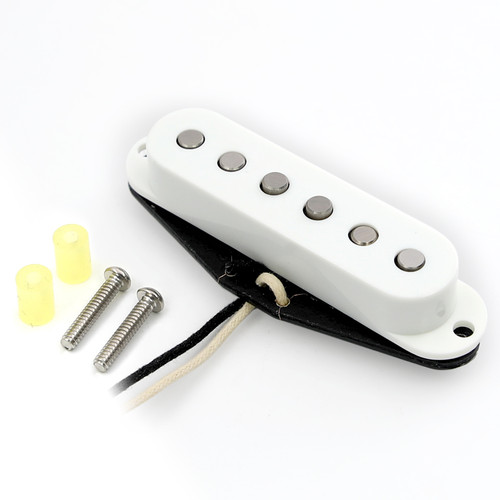

#M950110002 / STA-Center
Position : Center
Resistance : RWRP / 5.8K
Magnet : Alnico 5 ROD
Out-put wire : Cloth Lead Wire
Includes 2 pcs of phillips round head #6-32x20mm mounting screw and 2 pcs of 10 mm rubber spring
Approximate weight : 102g
Assy No. AS297W

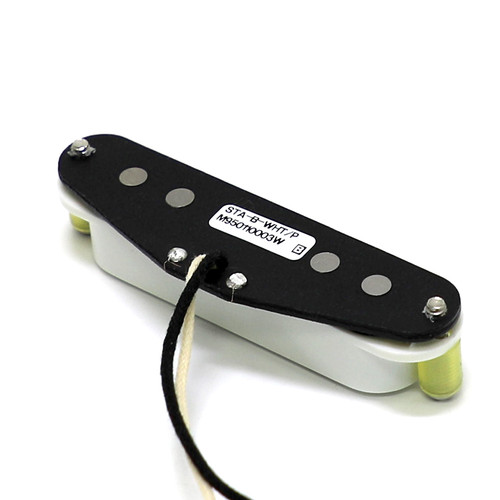

#M950110003 / STA-Bridge
Position : Bridge
Resistance : 6.4k
Magnet : Alnico 5 ROD
Out-put wire : Cloth Lead Wire
Includes 2 pcs of phillips round head #6-32x20mm mounting screw and 2 pcs of 10 mm rubber spring
Approximate weight : 106g
Assy No. AS298W

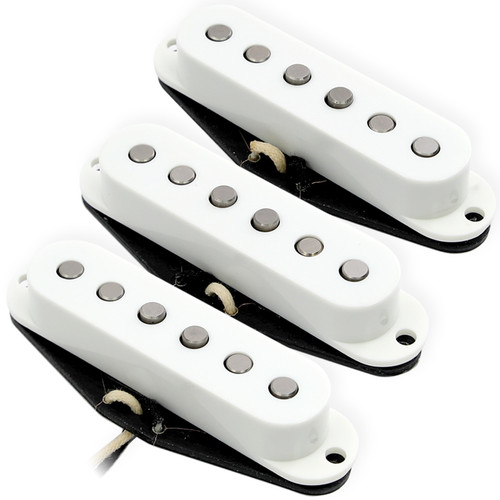

#M950110005 / STA-Set
#M950110001 / STA-Neck
#M950110002 / STA-Center
#M950110003 / STA-Bridge
Set of 3 pcs
Approximate weight : 309g
