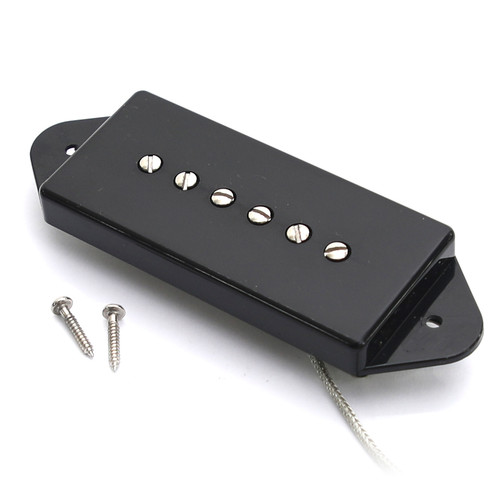

P90 Dog Ear Pickups / Alnico 5

P90D

Scatter wound pickup with de-gaussed Alnico 5 bar magnets. A fatter P-90 tone with smoother treble. Great for fat clean tone or harder driving rock with more grind. Neck and bridge will be equal, or bridge slightly hotter when playing single notes.
Sold separately, or available in matched 2 or 3 piece sets. RWRP sets for hum-canceling operation. Single conductor, braided shield lead wire. The classic raw single-coil sound.
These models carry on the raw sound of early rock, jazz and electric blues with two high quality Alnico 5 magnets.

#M950126501 / P90D-Neck

Position : Neck
Resistance : 7.1K
Magnet : Alnico 5 Bar
Out-put wire : 1P Braided Shield
Assy No. : AS152W

Included 2 pcs of phillips round head 2.6x15mm wood mounting screws

Approximate weight : 204g

#M950126503 / P90D-Bridge

Position : Bridge
Resistance : 10.2K
Magnet : Alnico 5 Bar
Out-put wire : 1P Braided Shield
Assy No. : AS152

Included 2 pcs of phillips round head 2.6x15mm wood mounting screws

Approximate weight : 204g

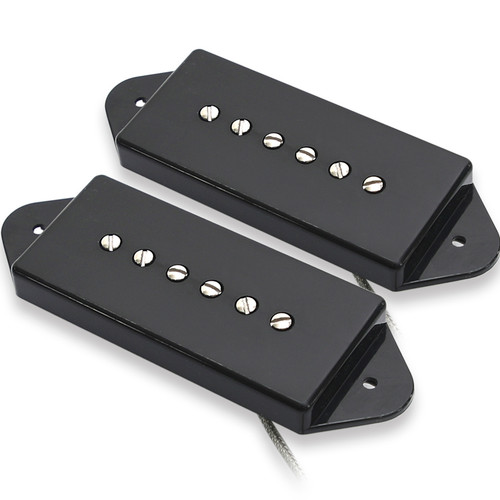

#M950126505 / P90D-Set

#M950126501 / P90D-Neck
#M950126503 / P90D-Bridge
Set of 2 pcs

Approximate weight : 408g
